Introduction
In this tutorial, we are going to create a project which uploads and reads a dataset (CSV file) into a database and analyze queries given by the user and return results.
Link of dataset Orders : source
Technologies:
- Java 8
- Spring Boot (with Spring Web MVC, Spring Data JPA)
- Maven
- Apache Commons CSV
- H2 Database
Spring Boot Rest APIs for uploading CSV Files:
As we know, we have a csv file that contains Orders data as following:
csv
Order ID,Order Date,Order Quantity,Sales,Ship Mode,Profit,Unit Price,Customer Name,Customer Segment,Product Category
3,10-13-2010,6,261.54,Regular Air,-213.25,38.94,Muhammed MacIntyre,Small Business,Office Supplies
6,02-20-2012,2,6.93,Regular Air,-4.64,2.08,Ruben Dartt,Corporate,Office Supplies
32,07-15-2011,26,2808.08,Regular Air,1054.82,107.53,Liz Pelletier,Corporate,Furniture
32,07-15-2011,24,1761.4,Delivery Truck,-1748.56,70.89,Liz Pelletier,Corporate,Furniture
32,07-15-2011,23,160.2335,Regular Air,-85.129,7.99,Liz Pelletier,Corporate,Technology
...We’re going create a Spring Boot Application that provides APIs for:
- Uploading CSV File and storing data in H2 Database
- Getting a list of orders from H2 table
- Getting Orders By Customer Name from H2 table
- Getting Orders By Customer Name and Order Date from H2 table

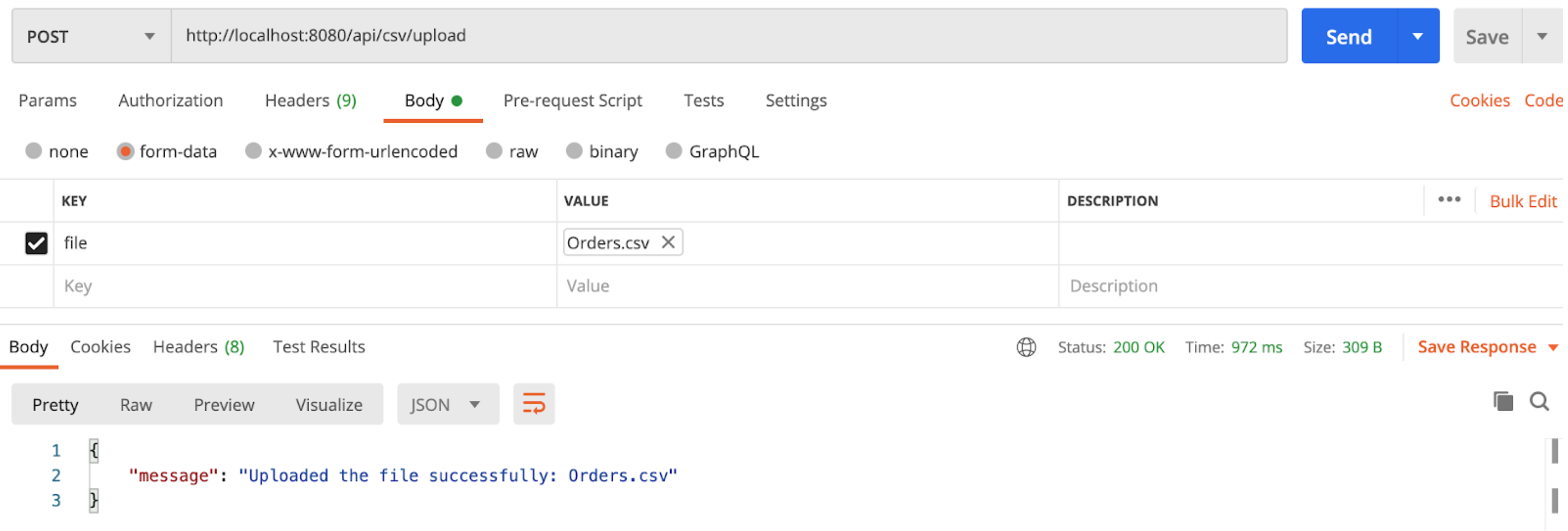

After the CSV file uploaded successfully in Postman:

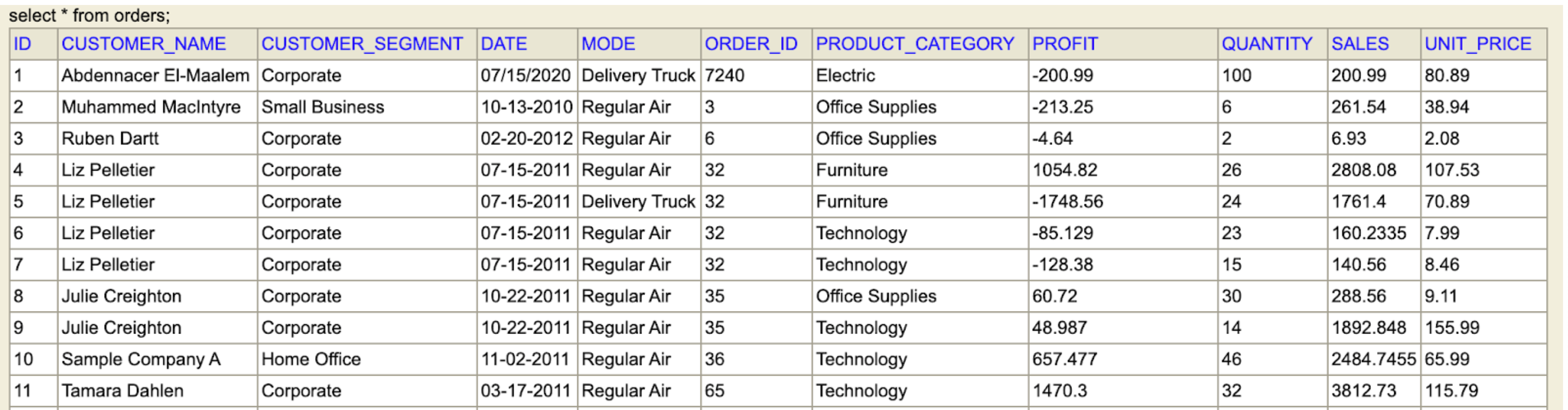

Orders table in H2 database will look like this:

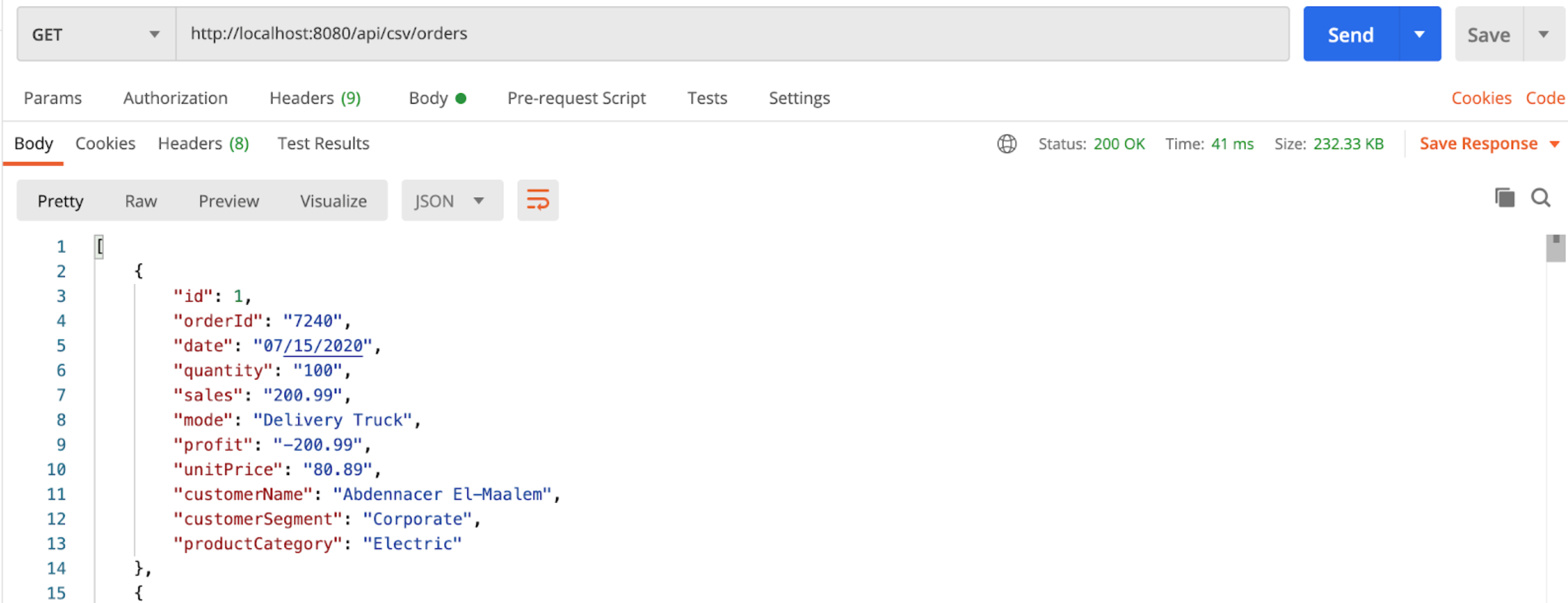

If we get a list of Orders, the Spring Rest-API will return:

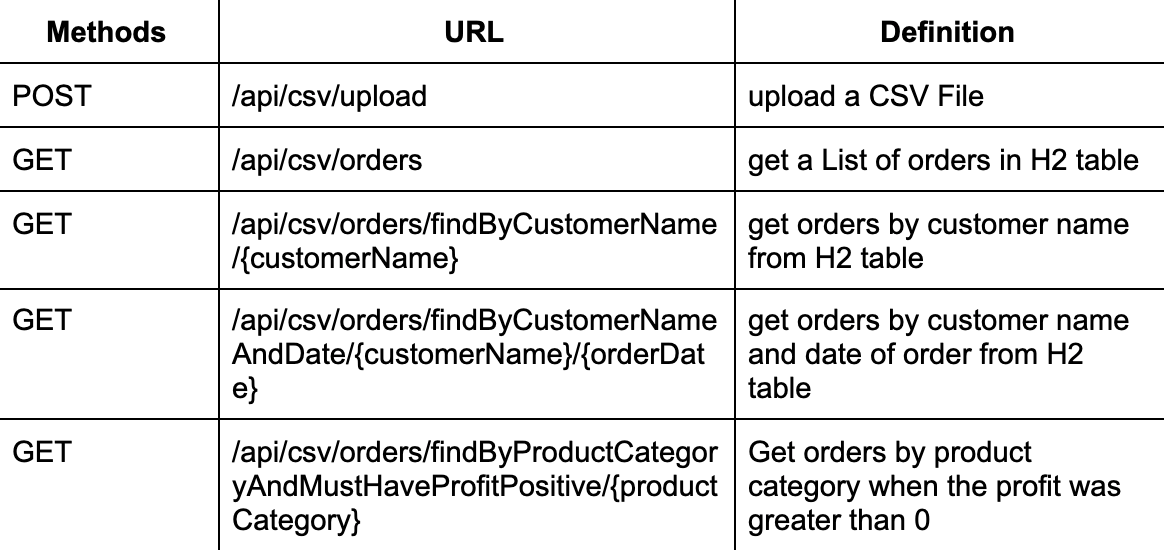

These are APIs to be exported:

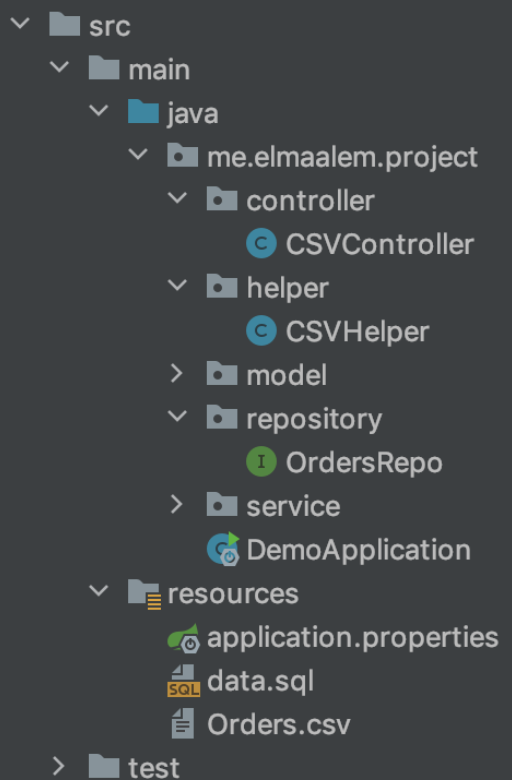

Project Structure:
Setup Spring Boot CSV File Upload project:
In the first step, we use spring initializr to generate the first configuration of the project:
Use this link to get this configuration: here
Finally, we get the configuration in the file pom.xml.
Configure Spring Datasource, JPA, Hibernate:
Under src/main/resources folder, open application.properties and add this code:
properties
spring.datasource.url= jdbc:h2:mem:testdb
spring.datasource.driverClassName=org.h2.Driver
spring.h2.console.enabled=true
spring.datasource.username= sa
spring.datasource.password=
spring.jpa.properties.hibernate.dialect= org.hibernate.dialect.H2Dialect
# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto= updateDefine Data Model:
In the model package, we define Orders class. model/Orders.class:
java
@Data
@AllArgsConstructor
@NoArgsConstructor
@Entity
public class Orders {
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private long id;
private String orderId;
private String date;
private String quantity;
private String sales;
private String mode;
private String profit;
private String unitPrice;
private String customerName;
private String customerSegment;
private String productCategory;
}Create a Data Repository for working with Database:
Let’s create a repository to interact with Orders from the database. In the repository package, create an OrdersRepo interface that extends JpaRepository.
repository/OrdersRepo.java:
java
@Repository
public interface OrdersRepo extends JpaRepository<Orders,Long> {
}Implement Read/Write CSV Helper Class:
Under helper package, we create CSVHelper class with 3 methods:
- hasCSVFormat(): check if a file has CSV format or not
- csvToOrders(): read InputStream of a file, return a list of Orders
We’re gonna use Apache Commons CSV classes such as: CSVParser, CSVRecord, CSVFormat. Here is the class helper/CSVHelper.java:
java
@Component
public class CSVHelper {
public static String TYPE = "text/csv";
static String[] HEADERs = { "Order ID","Order Date","Order Quantity","Sales","Ship Mode","Profit","Unit Price","Customer Name","Customer Segment","Product Category" };
public static boolean hasCSVFormat(MultipartFile file) {
if (!TYPE.equals(file.getContentType())) { return false;}
return true;
}
public static List<Orders> csvToOrders(InputStream is) {
try (BufferedReader fileReader = new BufferedReader(new InputStreamReader(is, "UTF-8"));
CSVParser csvParser = new CSVParser(fileReader,
CSVFormat.DEFAULT.withFirstRecordAsHeader().withIgnoreHeaderCase().withTrim());){
List<Orders> orders = new ArrayList<Orders>();
Iterable<CSVRecord> csvRecords = csvParser.getRecords();
for (CSVRecord csvRecord : csvRecords) {
Orders order = new Orders(
Long.parseLong(csvRecord.get(0)),
csvRecord.get(1),
Integer.parseInt(csvRecord.get(2)),
Double.parseDouble( !csvRecord.get(3).isEmpty() ? csvRecord.get(3) : "0.00"),
csvRecord.get(4),
Double.parseDouble( !csvRecord.get(5).isEmpty() ? csvRecord.get(5) : "0.00"),
Double.parseDouble( !csvRecord.get(6).isEmpty() ? csvRecord.get(6) : "0.00"),
csvRecord.get(7),
csvRecord.get(8),
csvRecord.get(9)
);
orders.add(order);}
return orders;
}catch (IOException e) {
throw new RuntimeException("fail to parse CSV file: " + e.getMessage());
}}}Create CSV File Service:
CSVService class uses CSVHelper and OrdersRepository for 4 functions:
- save(MultipartFile file): store CSV data to database
- getAllOrders(): read data from database and return
List<Orders> - getOrdersByCustomerName(String customerName): select orders which contain the string of customer name and return
List<Orders>. - getOrdersByCustomerNameAndDate(String name,String date)
Here is the code of service/CSVService.java:
java
@Service
public class CSVService {
@Autowired
OrdersRepo repository;
public void save(MultipartFile file) {
try {
List<Orders> orders = CSVHelper.csvToOrders(file.getInputStream());
repository.saveAll(orders);
}catch (IOException e) {
throw new RuntimeException("fail to store csv data: " + e.getMessage());
}
}
public List<Orders> getAllOrders() {
return repository.findAll();
}
public List<Orders> getOrdersByCustomerName(String customerName){
return repository.findAll().stream()
.filter(s->s.getCustomerName().contentEquals(customerName))
.collect(Collectors.toList());}
public List<Orders> getOrdersByCustomerNameAndDate(String name,String date) {
return repository.findAll().stream()
.filter(s->s.getCustomerName().contentEquals(name))
.filter(s->s.getDate().contentEquals(date))
.collect(Collectors.toList());
}}Create Controller for Upload CSV Files:
In the controller package, we create a CSVController class for RestAPIs.
@CrossOriginis for configuring allowed origins.@Controllerannotation indicates that this is a controller.@GetMappingand@PostMappingannotation is for mapping HTTP GET & POST requests.- We use
@Autowiredto inject implementation of CSVService bean to local variables.
controller/CSVController.java:
java
@CrossOrigin("http://localhost:8080")
@Controller
@RequestMapping("/api/csv")
public class CSVController {
@Autowired
CSVService fileService;
//Upload dataset Orders.csv;
@PostMapping("/upload")
public ResponseEntity<String> uploadFile(@RequestParam("file") MultipartFile file) {
String message = "";
if (CSVHelper.hasCSVFormat(file)) {
fileService.save(file);
try {
fileService.save(file);
message = "Uploaded the file successfully: " + file.getOriginalFilename();
return ResponseEntity.status(HttpStatus.OK).body( "\" message \": \" "+ message +" \"");
} catch (Exception e) {
message = "Could not upload the file: " + file.getOriginalFilename() + "!";
return ResponseEntity.status(HttpStatus.EXPECTATION_FAILED).body("\" message \": \" "+ message +" \"");
}
}
message = "Please upload a csv file!";
return ResponseEntity.status(HttpStatus.BAD_REQUEST).body("\" message \": \" "+ message +" \"");
}
//1-SELECT * FROM Order;
@GetMapping("/orders")
public ResponseEntity<List<Orders>> getAllOrders () {
try {
List<Orders> orders = fileService.getAllOrders();
if (orders.isEmpty()) {
return new ResponseEntity<>(HttpStatus.NO_CONTENT);
}
return new ResponseEntity<List<Orders>>(orders, HttpStatus.OK);
} catch (Exception e) {
return new ResponseEntity<>(null, HttpStatus.INTERNAL_SERVER_ERROR);
}
}
//2-Stream :Get Order By Customer Name
@GetMapping(value = "/orders/findByCustomerName/{customerName}")
public ResponseEntity<List<Orders>> getOrdersByCustomerName (@PathVariable String customerName) {
try {
List<Orders> orders = fileService.getOrdersByCustomerName(customerName);
if (orders.isEmpty()) {
return new ResponseEntity<>(HttpStatus.NO_CONTENT);
}
return new ResponseEntity<List<Orders>>(orders, HttpStatus.OK);
} catch (Exception e) {
return new ResponseEntity<>(null, HttpStatus.INTERNAL_SERVER_ERROR);
}
}
//3-Stream :Get Order By Customer Name and Order Date
@GetMapping("/orders/findByCustomerNameAndDate/{name}/{orderDate}")
public ResponseEntity<List<Orders>> getOrdersByCustomerNameAndDate (@PathVariable String customerName,@PathVariable String orderDate) {
try {
List<Orders> orders = fileService.getOrdersByCustomerNameAndDate(customerName,orderDate);
if (orders.isEmpty()) {
return new ResponseEntity<>(HttpStatus.NO_CONTENT);
}
return new ResponseEntity<List<Orders>>(orders, HttpStatus.OK);
} catch (Exception e) {
return new ResponseEntity<>(null, HttpStatus.INTERNAL_SERVER_ERROR);
}
}
}Run & Check Results:

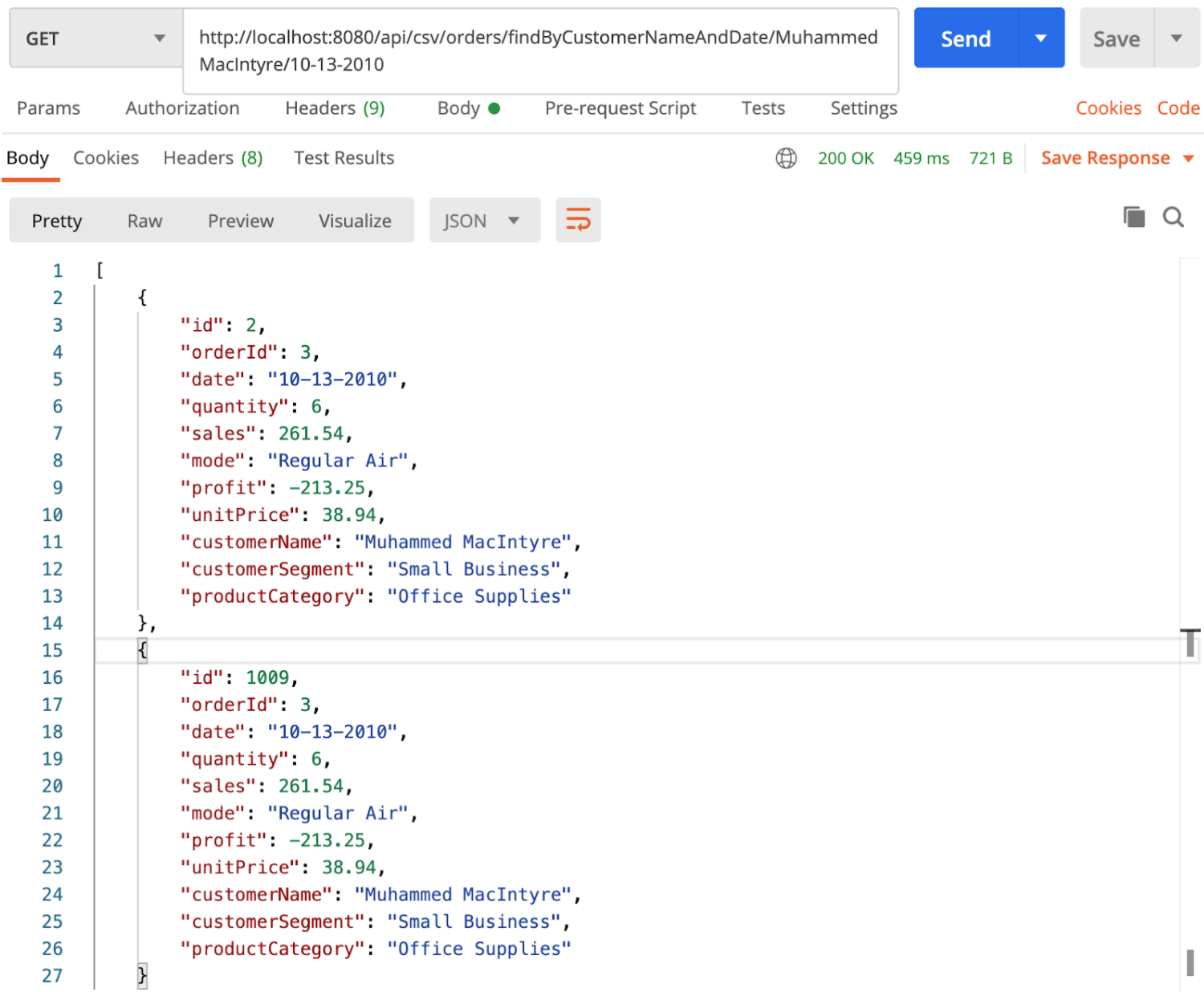

Let’s use Postman to execute some requests.
Conclusion 🚀 🚀 🚀
Thank you for reading! If you enjoyed it. Please upvote 👍 it and don’t forget to share! 👍🤙
If you want to test the examples above, you will find my Github code link:
Spring Boot App: Upload & Read CSV file into database
Link of dataset Orders : source
